The aerosol impact spectrometer: a versatile platform for studying the velocity dependence of nanoparticle-surface impact phenomena

Abstract

A new apparatus designed to accelerate/decelerate and study the surface impact phenomena of charged aerosols and nanoparticles over a wide range of mass-to-charge (m/z) ratios and final velocities is described. A nanoparticle ion source coupled with a linear electrostatic trap configured as an image charge detection (ICD) mass spectrometer allows determination of the mass-to-charge ratio and the absolute charge and mass of single nanoparticles. A nine-stage linear accelerator/decelerator is used to fix the final velocity of the nanoparticles, and in the results reported here the coefficient of restitution for polystyrene latex spheres (PSLs) impacting on silicon is measured using ICD techniques. To enable this apparatus to study a wide range of m/z, the data acquisition system uses a transient digitizer interfaced to a field-programmable gate array module that allows real time calculation of m/z and determination of the pulse sequence for the linear accelerator/decelerator. Electrospray ionization of a colloidal suspension of PSL spheres of 510 and 990 nm has been used to demonstrate acceleration and deceleration of charged nanoparticles and the resolution of the apparatus. Measurements of the coefficient of restitution for PSLs on silicon over the range 10-400 m/s are consistent with previous studies.

Introduction

As interest in the characterization of nanoparticles, aerosols and dusts increases, the need for the development of new tools for the manipulation and analysis of single particles continues to grow [1]. An area of continued interest for an understanding of problems ranging from atmospheric chemistry to astrophysical phenomena to industrial applications pertains to the impact phenomena of nanoparticles. Theoretical and experimental studies of nanoparticle-surface collisions at both low and high velocity ranges continue to be reported [2–7]. There is a large body of work on hypervelocity impact phenomena dating back to the early 1960’s motivated by the need to understand the effect of cosmic dust and micrometeoroid impacts on space vehicles. Larger objects are most conveniently accelerated with light-gas guns [8], however, for smaller particles that can be easily charged, electrostatic accelerators are a convenient approach [9–12]. In early work in this area, a 2 MV van de Graaff dust accelerator was described and shown to accelerate 1 μm particles to ~ 6 km/s [10, 11]. One early example of a switched, multistage linear accelerator for large particles was described by Vedder [13], however it was not until advances in high-voltage switching circuitry that laboratory-scale linear accelerators, such as the one described by Hendell and Even [14], became more common. In the present work the development of a versatile new nanoparticle mass spectrometer/accelerator/decelerator, the Aerosol Impact Spectrometer (AIS), is described with a demonstration of its capabilities using polystyrene latex (PSL) spheres, including studies of collision inelasticity on silicon wafers by determination of incident and scattered velocities in measurements of the coefficient of restitution.

The key to carrying out mass spectrometric measurements on single charged nanoparticles is the use of charge detection mass spectrometry (CDMS) techniques (1). CDMS determines the absolute charge on a particle from the magnitude of the image charge induced on a pickup electrode when a charged particle passes through. The image charge waveform also yields the particle time-of-flight (TOF) and velocity through the pickup providing the mass-to-charge ratio for fixed energy particles [15]. This method has been used in accelerator experiments since at least 1960 [9], and with the increasing interest in studies of massive biomolecules, cells and nanoparticles it has seen more recent applications in mass spectrometry measurements [16–24], with the state of the art recently described by Keifer and Jarrold [25]. In our own laboratory, we make use of a variant of this approach, applying a charge-pickup electrode in an electrostatic fast-ion beam trap to monitor the ion density oscillating in the trap and carry out Fourier-transform (FT) mass spectrometry on ensembles of molecular ions [26, 27]. In the present apparatus the m/z ratio of a single particle provides the information required to accelerate or decelerate that particle for studies of particle impact.

As shown by Hendell and Even [14], and later applied by Hsu and co-workers [28], a linear accelerator for large molecular ions can be configured using modern high-voltage MOSFET switching techniques. In the present apparatus, the CDMS determines the m/z ratio for each particle in real time, providing the information required to accelerate or decelerate single particles over a wide range of m/z by generating the appropriate acceleration/deceleration pulsed waveform for a linear accelerator (LINAC) structure composed of a series of cylindrical electrostatic elements. Acceleration of ion ensembles by this technique is not hindered by space charge limitations since the effect of space charge is progressively reduced as the particles accelerate. Deceleration of ion ensembles does become problematic as a result of increasing space charge, and that is the benefit of working with single charged nanoparticles where this limitation is not present.

In the following sections, the initial results obtained with the AIS will be presented, showing the measurement of charge/mass distributions, acceleration and deceleration of single charged PSL spheres, and measurements of impact inelasticity of single particles with a silicon substrate. These results show that the AIS will have great utility for measuring the reflection of nanoparticles from surfaces, yielding quantitative information on the coefficient of restitution that describes the inelasticity of such collisions [29, 30].

Experimental apparatus

A schematic of the AIS is shown in Fig. 1. An electrospray ionization (ESI) ion source and beam line including an aerodynamics lens (ADL) is orthogonal to the axis of the nanoparticle electrostatic trap (NET) and the LINAC. A quadrupole deflector (QD) is used to provide an energy selected beam of single nanoparticles for analysis in the NET. The QD can be operated over a wide energy range, selecting different particle distributions as determined by the size, charge and ESI expansion conditions. Characterization of the NET, the LINAC, and the initial measurements of impact dynamics are detailed in the following paragraphs.

Fig. 1
figure 1

Schematic and perspective view of the Aerosol Impact Spectrometer. Components starting from the charged aerosol source: Enclosed electrospray ionization (ESI); Desolvation tube; Aerodynamic Lens (ADL); Differential pumping, ion optics and image charge detector ICD-QD1; Quadrupole Deflector (QD), ion optics and ICD-QD2; Injection optics for Nanoparticle Electrostatic Trap (NET), including ICD1; NET, including ICD2; Injection optics; and 9-stage Linear Accelerator (LINAC); Final ICD (ICD3) and collision target. Locations of image charge detection tubes are indicated with a black arrow

Charged particles are formed by electrospray ionization and transferred into a low vacuum through a 150-μm Pt electron microscope aperture. A heater tube dries the particles before they enter the ADL, which collimates and focuses the particle beam. The particle beam passes through two stages of differential pumping and enters a chamber that houses the electrostatic quadrupole deflector. The QD selectively turns particles 90° based on their kinetic energy per charge into the next chamber that contains the NET. The NET is a linear electrostatic trap configured as an image charge mass spectrometer, as first described by Zajfman and co-workers on ion ensembles [31, 32] and in a single-particle application by Benner [1]. Briefly, the NET is gated to trap one particle at a time, before measuring the mass-to-charge ratio and the absolute charge of the particle. These particles can be trapped in the NET with an efficiency ~70% for periods in excess of 5 seconds with a distribution of oscillation frequencies in the several hundred Hertz range. A Labview-based data acquisition code uses the m/z data to calculate the required switching times for the LINAC to accelerate the particle up to the required velocity. The particle is then released from the trap into the LINAC for acceleration to the desired velocity.

Electrospray ionization (ESI) source

The use of ESI for this type of application is based on prior work by Benner, Austin and others on polystyrene latex spheres, silica, mineral dusts and other systems [33–36]. The ESI source consists of a 360 μm O.D., 75 μm I.D. fused silica capillary mounted on an isolated aluminum block, which is held at approximately +4–6 kV. To date the AIS instrument has only been run in positive mode, but no impediment is anticipated for using it to study negatively charged particles. The tip of the capillary is positioned ~10 mm in front of a 150 μm aperture and is enclosed within a glass tube. The aperture is mounted on a 6.4 mm OD, 3.86 mm ID stainless steel tube that passes through an Ultra-Torr fitting into the instrument. The portion of this tube that extends out of the vacuum chamber is surrounded by an enclosure, through which nitrogen, heated to ~85 °C, flows. The heated nitrogen helps to desolvate the particles, and also acts as a curtain gas. 510 nm (Polyscience #07307) and 990 nm (Polyscience #07310) PSL spheres were suspended in 1:1 mixtures of 25 mM aqueous ammonium acetate and methanol, then delivered to the electrospray tip by a syringe pump operating at a rate of 0.26 mL/h. The final number densities were 30 × 109 particles per mL for the 510 nm PSL suspension, and 4.1 × 108 particles per mL for the 990 nm suspension. After entering the vacuum chamber, the particles pass through a 120 mm long, 4.5 mm I.D. stainless steel tube, which is heated to ~185 °C to completely desolvate the particles, and to evaporate charged solvent droplets.

Aerodynamic lens (ADL)

After exiting the heater tube, the particles enter an ADL, which aerodynamically focuses and collimates the beam of particles [37, 38]. In this instance the ADL consists of 5 apertures separated by 59 mm long, 12.1 mm I.D. spacers. The diameters of the apertures are 5.9, 5.3, 4.6, 3.4 and 3.1 mm. The section after the 5th aperture is connected to a mechanical vacuum pump. The pressure at the start of the ADL is 2.6 Torr, and the pressure in the pumped region is typically in the range of 0.5-1 Torr. The precise pressure after the ADL is adjusted, by throttling the vacuum pump, in order to maximize transmission of particles in a specific size range. Calculations along the line of those described by Wang and McMurry[39] indicate that this ADL should transmit over 95% of particles in the range of 75 – 1200 nm.

Quadrupole deflector (QD)

Following the ADL, the particles pass through a 3.1 mm diameter aperture into the first differential pumping stage, which is connected to a Roots blower backed by a rotary mechanical pump. This pumping stage also contains an image charge detector tube (ICD) to confirm transmission of particles through the aerodynamic lens. A 5 mm aperture leads to the second differential pumping stage, pumped by a Pfeiffer TMH 064 turbomolecular pump. A 3.2 mm aperture separates the second differential pumping stage from the quadrupole deflector chamber, which is pumped by an Osaka TG240 turbomolecular pump. The quadrupole deflector chamber is pumped to a vacuum of 3 × 10-5 Torr.

The QD assembly is in the center of the chamber and consists of 4 parallel, quarter-cylinder stainless steel rods (19 mm radius). The rods are mounted on 1/8″ precision ground glass spheres that locate the rods such that their curved faces are tangential to an inscribed circle of 33.7 mm diameter. Positive and negative potentials are applied to opposing pairs of rods, resulting in an electrostatic field that will turn particles that have kinetic energy, in eV per charge, equivalent to the potential applied to the rods. Particles with excess kinetic energy will overshoot the bend, whereas particles with less kinetic energy will impact the electrode on the inside of the curve.

There are two sets of ion optics in the chamber with the QD, each comprised of an einzel lens, an x-y deflector and an ICD, modeled after the detector presented by Fuerstenau and Benner [16]. One is positioned before the entrance to the QD, the other after the exit from the QD. These ion optics serve to focus the selected particles and direct them to the next chamber, which contains the NET and LINAC. The first ICD (ICD-QD1) is used to confirm transmission of particles through the ADL. The second ICD (ICD-QD2) is used to determine the optimal deflector potential to direct the particle beam towards the next chamber.

Nanoparticle electrostatic trap

After the QD, the energy-selected particles pass into the NET chamber through another set of electrostatic optics (einzel lens and x-y deflectors) mounted on an isolated rail system (Fig. 2). This assembly is mounted in a vacuum chamber that is pumped by another Osaka TG240 turbomolecular pump and achieves vacuum of 10-6 Torr. Another ICD is located directly after the optics stack to track transmission of particles into the NET chamber. The ICD connects directly to the junction field-effect transistor (JFET) input of an Amptek A250 charge-sensitive amplifier circuit mounted in vacuum on the grounding plates shielding the detector. Output from the ICD circuit passes to a feedthrough where it can be monitored externally.

Fig. 2
figure 2

Schematic of the NET assembly. The electrostatic optical elements are mounted on alumina rails to allow isolation of each component

After passing through this ICD tube, particles are transmitted into the NET. The design of the NET (Fig. 3) was modeled after the ion trap originally developed by Benner [1]. Two electrostatic mirrors each composed of four individual elements connected by a network of external potentiometers establish the fields that trap the charged particles. The mirror elements have an outer diameter of 63.5 mm, a beam-line inner diameter of 9.7 mm and a thickness of 1.5 mm. Each mirror stack incorporates an additional three elements that act as an intracavity einzel lens to refocus trapped particles. The NET has an ICD (ICD2) mounted in the field-free region centered between the two, seven-element mirror stacks. ICD2 is a 38.1 mm long tube with an outer diameter of 15.9 mm and an inner diameter of 9.5 mm. The tube is isolated with PEEK insulators that mount on the final grounded einzel element of each mirror stack. The elements in each mirror stack are spaced by 4.8 mm nylon spacers mounted on alumina rods that hold the seven elements in place. The entire assembly is enclosed by two grounded plates and mounted on the isolated rail system with a total length of 173 mm. Each mirror stack is wired to a multipin feedthrough that connects to an external network of potentiometers. Each network is set up as a multistep voltage divider that controls the potential and field shape of each mirror stack independent of the other. The potentiometer networks are wired to two home-built high voltage (4 kV) MOSFET switches that control the mirror potentials. Potentials used on the NET mirrors are the same polarity as the charge of the particles being trapped. The intracavity-einzel lens can be operated in either polarity to establish a stable potential for trapping. SIMION 8.1.1 was used to generate a model of the field used in this experiment for the NET as shown in Fig. 4 [40]. ICD2 is wired directly to the junction field-effect transistor (JFET) input of an Amptek A250 charge sensitive amplifier circuit. This circuit is mounted in a shielded box directly above the assembly, and the output is connected with shielded coaxial cable to a coaxial feedthrough.

Fig. 3
figure 3

Diagram of the NET. VM is the potential applied to the NET mirrors. VEE is the potential applied to the embedded einzel. Separate potentiometer networks with separate HV switches control the two mirror potentials independent of each other, allowing for complete control of trapping potentials

Fig. 4
figure 4

SIMION (8.1) representation of the potentials in the NET. A positive potential is used on the outer NET mirrors to trap positive particles. Two einzel lenses operating with a negative focusing potential are mounted on either side of the central ICD tube to continually re-focus particles within the trap

The signal from the NET ICD2 is connected to a home-built shaping amplifier for baseline subtraction and signal gain. The output of this amplifier is connected to an FPGA (National Instruments PXI-7952R) with a high-speed digitizer front end (National Instruments NI 5731) and an oscilloscope (Tektronix DPO 3034) (Fig. 5). The overall gain of the A250 preamplifier and shaping amplifier is determined by applying a 5 mV trapezoidal waveform, with rise and fall times similar to those of the waveforms induced by the oscillating particles, through a 1.5 pF capacitor attached directly to the ICD pickup. The capacitor converts the known voltage to a known charge, and the amplified response to the known input provides the overall gain calibration factor. As currently configured this amplifier has successfully detected particles with as low as ~1000 charges. Based on variation in the response to the calibration input signal, the 1 standard deviation uncertainty on the charge measurement is roughly 100 charges. The initial state of the trap has the entrance mirror potential lowered, and the exit mirror potential raised. When a particle passes through ICD2 in the trap, the output pulse from the charge-sensitive amplifier triggers closing of the entrance mirror. With both mirrors raised the charged particle oscillates in the trap producing a regular signal from ICD2 with a measurable amplitude and frequency. This signal is captured by the FPGA digitizer and analyzed by a LabView code while the particle is still trapped. The m/z ratio of the particle in the trap is determined from its oscillation frequency, f, using the following relationship [1, 26]:

$$ \raisebox{1ex}{$ m$}\!\left/ \!\raisebox{-1ex}{$ z$}\right.=\frac{C}{f^2} $$
(1)
Fig. 5
figure 5

Schematic of the Aerosol Impact Spectrometer data acquisition and computer control system

The calibration factor C is dependent on the trapping potentials of the NET and the kinetic energy-per-charge of the trapped particle. This factor is calculated using a SIMION simulation with these parameters [40]. In addition to frequency, the FPGA calculates the velocity of the particle in the trap by measuring the temporal width of the output pulses (t pulse width ) from ICD2 of length L ICD2:

$$ {v}_{particle}=\frac{t_{pulse\ width}}{L_{ICD2}} $$
(2)

This data is measured and calculated on the fly for each particle and is used to create the timing sequence used by the HV switches for acceleration/deceleration.

Linear accelerator

Directly after the NET there is a pair of x-y deflectors, mounted on a second isolated rail system in the same chamber. This rail system has the same layout and mounting as the NET, and allows the LINAC to be removed from the chamber independently of the NET. After the deflectors, twelve cylindrical polished stainless steel electrodes are mounted 1.7 mm apart on the remaining length of the rail. The accelerator electrodes all have a 50.8 mm outer diameter, a 10.16 mm inner diameter, and beveled edges. The first four electrodes are all the same length (L 1  = 20.32 mm), with the length of each subsequent element determined by the following relationship:

$$ {L}_n={L}_1*\sqrt{n};\ n=\left\{2,\ 3,\ 4,\dots, 9\right\} $$
(3)

The first three electrodes act as a lens with each element connected to external power supplies (two KIKUSUI PMC350-0.2A and one Canberra 3002). The remaining 9 electrodes are wired through two HV feedthroughs (30 kV) with every second element collectively wired to one feedthrough and every other element collectively wired to the other feedthrough. All elements in each set are connected together with copper rods. These two rods are connected to each HV feedthrough with a shielded HV cable. The elements are pulsed with two 30 kV HV switches (Behlke 301-03-GSM).

To calculate the timing used to trigger the two HV switches, the data acquisition program uses the m/z of the particle and the initial velocity to perform a simulation of the particle travelling through the LINAC. This is accomplished be using a position-dependent electric field equation derived from a SIMION model of the LINAC electrodes. A code steps through time and velocity to calculate the acceleration of the particle under the influence of the electric field:

$$ {t}_x={t}_{x-1}+\left(\frac{dx}{v_{x-1}}\right)\ and\ {v}_x={v}_{x-1}+\left(\frac{E_{x-1}}{m/ z}*\left({t}_x-{t}_{x-1}\right)\right) $$
(4)

In Eq (4), t x is the time at position x, v x is the velocity at position x, E x is the electric field at position x, and dx is the step size of the calculation, in this case 0.01 mm. This timing calculation is performed while the particle is still trapped in the NET. Upon completion of the calculation, timing data is transferred to the FPGA. The FPGA then releases the particle from the trap by lowering the exit mirror and triggers the two high voltage (HV) switches connected to the LINAC at the times required to accelerate/decelerate the particle to a final energy that depends on the number of elements used and the potential applied to each element.

Collision target

After the LINAC rail system, another shielded ICD tube (ICD3) is mounted on an isolated rail system of the same design as the NET and LINAC rails. This rail system is in a chamber pumped by an Osaka TG420 to a vacuum of 10-7 Torr. The ICD is placed 19.8 mm in front of an aluminum block on which a collision target is mounted. The collision target used in this experiment was a 2.5 cm square piece of p-type silicon (cut from a polished, 6 inch diameter, 600 μm thick boron doped wafer, Ziti Inc.). An Amptek A250 charge sensitive amplifier circuit is located directly above the ICD tube, and the output is connected to the FPGA digitizer through a second home-built baseline subtraction and amplification circuit to capture signals from ICD3. The target and ICD3 are positioned such that particles rebounding at a maximum angle of 5.2° from center can be measured by ICD3 for incident and rebounding beam axis velocity as shown in Fig. 6.

Fig. 6
figure 6

ICD3 mounted in front of Si collision target. ICD3 is positioned to record particles within a 5.2° angle from centerline of the beam axis

After acceleration, the FPGA digitizer captures a waveform from the output of ICD3. The waveform is transferred to the Labview program which calculates the accelerated velocity of the particle. The program also determines if the particle has rebounded from the collision target, and calculates the rebound velocity of the particle from the rebounding peak width. After completing this final acquisition the program saves all information to a data file and resets itself and the FPGA to accept a new particle. The entire run time for each particle in this experiment was approximately ~200 ms.

Results and discussion

Charge distributions in 510 and 990 nm PSL colloids

Electrospray ionization of PSLs produces particles that carry a wide range of elementary charges.[41–43] The QD selects a subset of these particles for injection into the NET and measurement with ICD2. The Rayleigh limit [44] for a charged liquid governs the maximum charge a particle can acquire when generated by electrospray ionization [45]. To avoid Coulombic explosion, the total charge of a liquid sphere, q, must satisfy:

$$ q\le 8\pi \sqrt{\epsilon_0\gamma {a}^3}, $$
(5)

where ϵ 0 is the permittivity of free space, γ is the surface tension of the liquid, and a is the radius of the liquid droplet. The surface tension can be approximated as the surface tension of a 50:50 H2O:CH3OH solution. At the desolvation gas temperature of ~85 °C used in these experiments the surface tension of this solvent is estimated to be 26.56mN/m [46]. For the particle sizes presented here the Rayleigh limits in these conditions are 9,800 and 26,500 elementary charges, z, for the 510 and 990 nm PSLs, respectively.

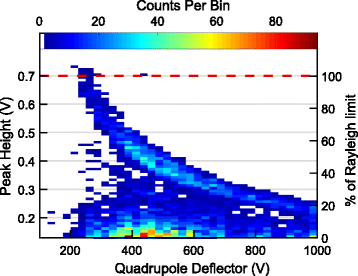

Figure 7 shows a 2D colormap of the number of 990 nm PSL particles passing through the ICD-QD2, immediately after the QD, plotted against the QD potential and amplitude of the image charge signal for each particle. ICD-QD2 was not calibrated directly, but comparison to charge measurements performed on ICD2 shows that the Rayleigh limit of 26500 charges would correspond to a peak height of 0.7 V on ICD-QD2. The region of interest is the curved band (the large horizontal feature correlated with lower peak heights corresponds to particles that have impacted the surface of ICD-QD2, rather than passing through). The inverse relationship between the amplitude of the image charge signal and QD potential is consistent with particles presenting with a constant total kinetic energy, which in turn is consistent with particles of similar size, travelling at similar velocities. At low QD potentials, particles with a large number of charges are selected, with the number of charges limited by the Rayleigh limit. At high QD potentials, the kinetic energy is partitioned among fewer charges, leading to the detection of correspondingly smaller amplitude image charge signals.

Fig. 7
figure 7

2D histogram of peak height of 990 nm PSLs arriving at ICD-QD2, plotted against QD potential. ICD-QD2 is not directly calibrated, but the calibration factor can be inferred by reference to another detector (ICD2) . The average number of charges on a 990 nm PSL as measured by ICD2 for particles selected with the QD set to 400 V is 17000. This corresponds to a peak height of 0.45 V on ICD-QD2, so the Rayleigh limit of 26500 charges would correspond to about 0.7 V (as shown by the dashed red line). The large number of peaks with heights of <0.2 V are due to particles that have hit the detector pickup instead of passing all the way through

In Fig. 8 the measured charge distributions for 510 nm and 990 nm particles are shown. In these measurements, the QD was set to 70 V for selection of 510 nm particles, and to 400 V for 990 nm particles. The charge measurement is performed by calculating the mean peak height in volts of the image charge waveform induced by the trapped particle (Fig. 9) in a 64 ms data acquisition window. The amplitude of the acquired waveform is converted to a measure of charge using the gain calibration factor. These charge measurements fall below the Rayleigh limit for each species and above previous measurements reported for smaller PSLs [47].

Fig. 8
figure 8

Charge distribution of 510 nm PSL (blue) and 990 nm PSL (red) species, energy selected for 70 eV/z and 400 eV/z, respectively

Fig. 9
figure 9

Portion of typical ICD2 trace for a 990 nm PSL oscillating in the NET. Acquisition captures all peaks, overlays them and finds the mean peak height to calculate particle charge

Using Eq. (1), the measured charge and frequency can be used to calculate the mass of the trapped particles. For the PSL samples studied here, the expected mass-per-particle is in the Gigadalton range: 43.9 GDa (7.3 x 10-17 kg) for 510 nm PSLs, and 321.3 GDa (5.34 x 10-16 kg) for 990 nm PSLs. These experimental values for the particle mass are in good agreement with the expected values, as shown in Fig. 10 for the particle charge distributions shown in Fig. 8.

Fig. 10
figure 10

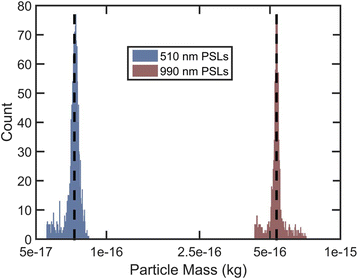

Mass distribution of 510 nm PSL (blue) and 990 nm PSL (red) species, with kinetic energies of 70 eV/z and 400 eV/z respectively. Expected mass of each species is shown in black (7.295e-17 kg for 510 nm PSLs and 5.336e-16 kg for 990 nm PSLs). For the presented histogram, 510 nm particles whose mass is more than ±1.3σ from the mean are rejected, and 990 nm particles whose mass is more than ±0.8σ from the mean are rejected

Variable acceleration and deceleration of charged nanoparticles

The variable energy linear accelerator allows for a wide range of particle final velocities to be achieved. Particles are accelerated/decelerated to a final velocity (v f ) according to the following relationship between their initial energy-per-charge (E 0 ), LINAC electrode potential (E L ), number of LINAC elements used (n), and initial velocity (v i ):

$$ \frac{v_f}{v_i}=\sqrt{\frac{E_0+ n{E}_L}{E_0}}. $$
(6)

The initial energy is determined by the potential set on the QD, and the initial velocity is determined by the pressure differential across the ADL and the QD chamber. For accelerating voltages the LINAC electrode potential in the above equation is treated as a positive quantity which results in an increase in final velocity (v f  > v i ). When decelerating particles the LINAC electrode potential is treated as a negative quantity. In the experiments presented here (using positively charged particles) acceleration was accomplished using negative potentials on the LINAC ranging from 0 V to -45.0 kV (nine stages at -5 kV/stage). Results using an acceleration potential -22.5 kV are shown in Fig. 11. Deceleration of particles was accomplished using positive potentials on the LINAC ranging from 0 V to +383 V (nine stages at 42.5 V/stage). Results using the deceleration potential +315 V are shown in Fig. 12. The apparatus is designed to use voltages up to 20 kV/stage. A terminal velocity of 2.5 km/s would be expected to be reached at 180 kV for the 510 nm PSLs with m/z values used in the present experiments. As Hsu and co-workers have shown, [28] it should be straightforward to extend the number of LINAC stages, and the apparatus is already configured to do so.

Fig. 11
figure 11

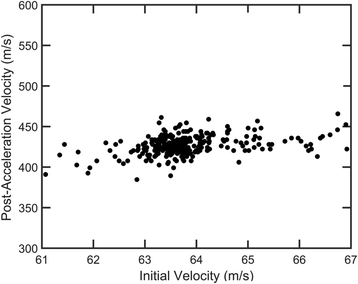

Accelerated velocity distribution for 990 nm PSL particles. Initial energy-per-charge of particles is 400 eV with an acceleration potential of -2500 V on each of the 9 electrodes

Fig. 12
figure 12

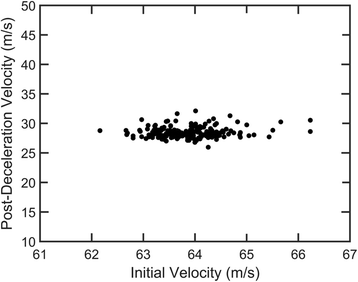

Decelerated velocity distribution for 990 nm PSL particles. Initial energy-per-charge of particles is 400 eV with a decelerating potential of +35 V on each of the 9 electrodes

Impact dynamics and coefficient of restitution for PSL nanoparticles

In various particle-surface collision models [48–52] of simple collisions (homogenous particles colliding with a flat surface at normal incidence with no rotation) the coefficient of restitution, e, is an empirical coefficient that fully characterizes the collision. At sufficient distances from the collision surface (to avoid continual particle-surface interaction) e can be defined by:

$$ {e}^2=1-\frac{K{E}_{incident}- K{E}_{rebound}}{K{E}_{incident}}={\left(\frac{v_{rebound}}{v_{incident}}\right)}^2 $$
(7)

where KE is the kinetic energy of the particle and v is the particle velocity. This is simply a measure of how the kinetic energy of the particle is partitioned between rebounding kinetic energy and the work of the collision (phonon radiation, target surface waves, plastic deformation of particle, etc.). In general, e can be written as a combination of coefficients associated with each mechanism of irreversible energy loss [50]:

$$ {e}_{tot}=1-{\displaystyle \sum_{m=1}^{m= n}}\left(1-{e}_m^2\right) $$
(8)

where e tot is described as a combination of an n number of coefficients each associated with energy loss mechanism m. Due to the comp lexity in encompassing all possible mechanisms for a given system, no single model exists that accurately predicts a general particle-surface collision. Accordingly, it is valuable to gather coefficient of restitution data for various materials and systems to allow the development of more general models. In Figs. 13 & 14, the measured coefficients of restitution are presented for 510 nm and 990 nm PSLs impacting along the surface normal on a silicon wafer. The data are compared to results presented by Dahneke [50, 53] for 1.27 μm PSLs on a fused silica substrate. Deviations from the results reported by Dahneke are minor and at this point are likely to be a result of subtle differences in measurement techniques and materials.

Fig. 13
figure 13

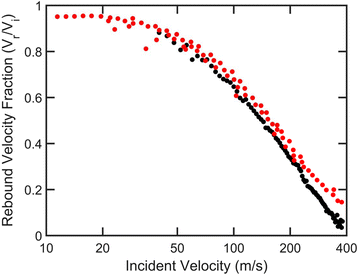

Coefficient of restitution data for 510 nm PSLs at normal incidence on silicon, presented with incident velocity grouped in 4 m/s bins then averaged (mean), black circles. Any data outside of one standard deviation from the mean for each bin were removed. Created from 4348 measured events. The data are compared to data reported by Dahneke (red circles) in ref. [53] for 1.27 μm PSLs at normal incidence on fused silica

Fig. 14
figure 14

Coefficient of restitution data for 990 nm PSLs at normal incidence on silicon, presented with incident velocity grouped in 4 m/s bins then averaged (mean), black circles. Any data outside of one standard deviation from the mean for each bin were removed. Created from 3592 measured events. The data are compared to data reported by Dahneke (red circles) in ref. [53] for 1.27 μm PSLs at normal incidence on fused silica

Conclusions

Formation, trapping, acceleration/deceleration, and coefficient of restitution measurements of highly-charged submicron particles have been demonstrated. Single highly charged PSL spheres have been generated with an ESI source. Subsequent trapping and CDMS analysis of individual particles has been demonstrated. Individual particle acceleration/deceleration has been demonstrated, allowing the acquisition of quantitative coefficient of restitution data. The flexibility of single particle on-the-fly analysis allows the Aerosol Impact Spectrometer to function with a wide range of nanoparticle masses and charges from a given particle source. Additionally, the variable energy selection of the spectrometer allows a variety of particle sources to be implemented in addition to the demonstrated electrospray ionization, including liquid metal ion sources[54–56] and needle-charge dust sources [57, 58]. The wide range of final energies achievable with the variable linear accelerator/decelerator will allow for a variety of scattering experiments to be performed to examine both hypo- and hypervelocity impact phenomena
